Specification

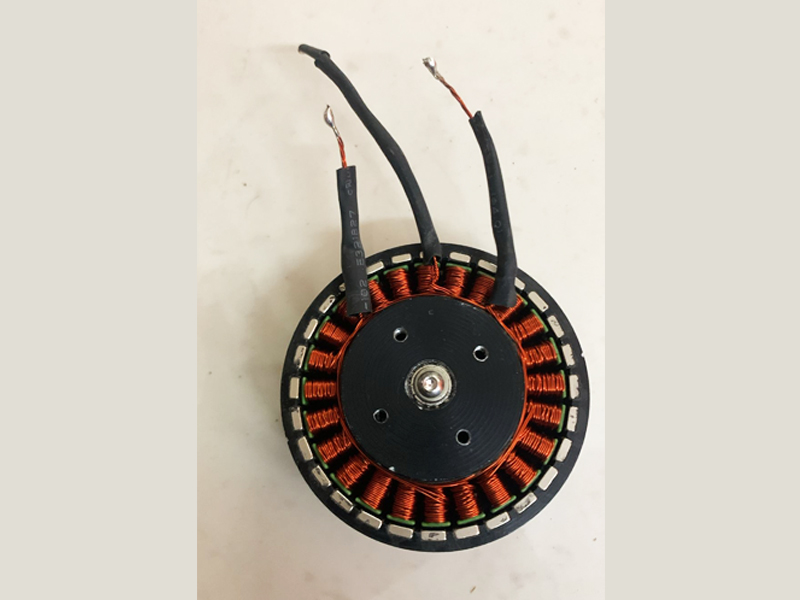

| Motor |
ADM 5506 |
| Propeller |
17 x 5.8 inch |
| ESC |
30 A |
| KV Rating |
200 KV |
| Battery |
4S |
| Thrust per Rotor |
1 – 1.4 kg |
| Takeoff Weight of Quadrotor |
5.8 kg |
Price Details

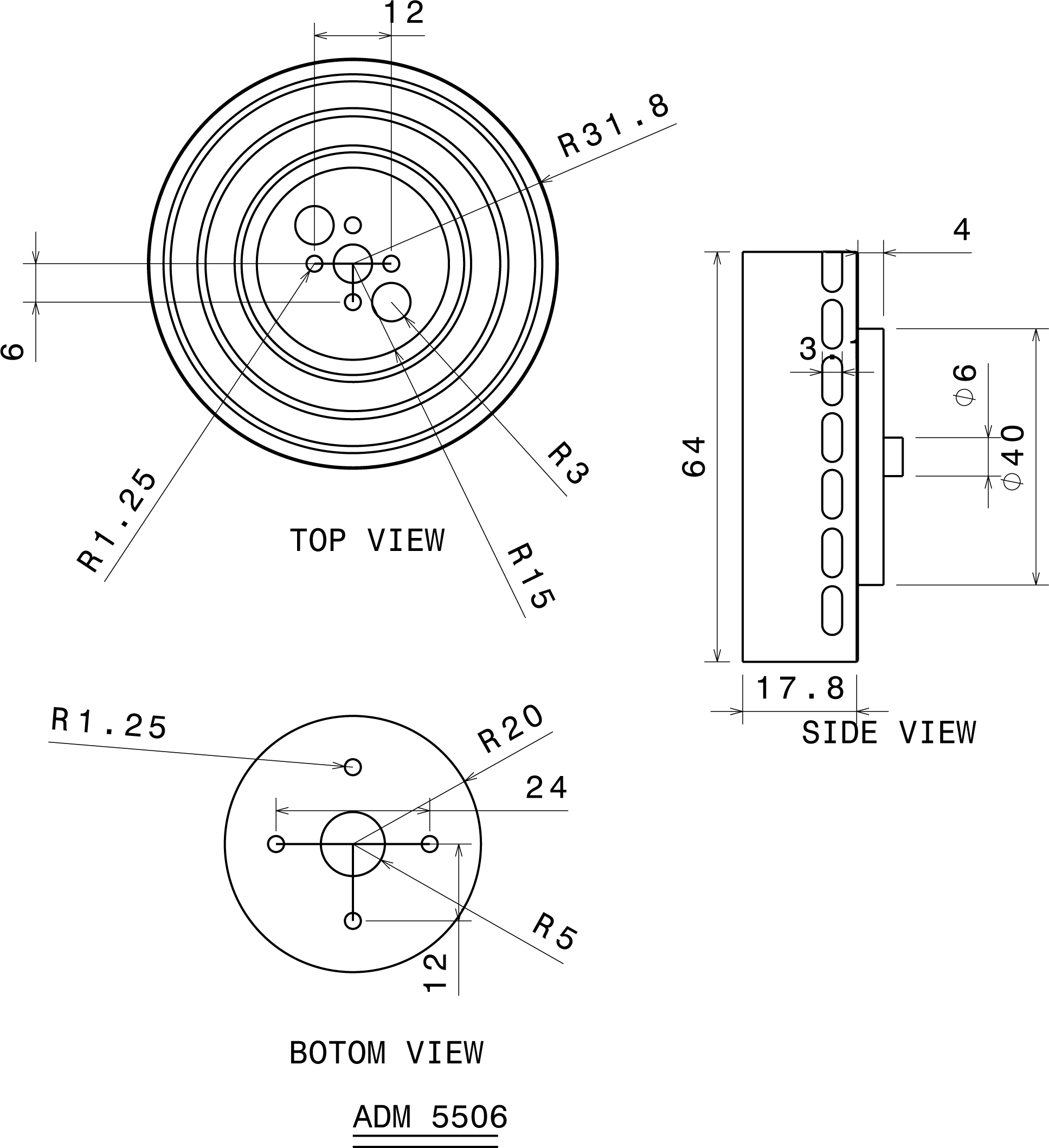

CAD Drawing
| Propeller |
Voltage (V) |
Throttle (pwm) |
Current (A) |
Power (W) |
Thrust (g) |
Speed (rpm) |
Efficiency (g/W) |
Temp (°C) |
| 18 x 5.8 inch |
25.0 |
1300 |
1.2 |
30.0 |
360 |
2594 |
12.00 |
32 |
| 25.02 |
1350 |
1.7 |
42.58 |
540 |
2830 |
12.85 |
| 24.91 |
1400 |
2.1 |
52.31 |
640 |
2940 |
9.24 |
| 24.72 |
1450 |
2.8 |
69.21 |
700 |
3400 |
10.11 |
| 24.54 |
1500 |
3.8 |
93.20 |
920 |
3621 |
9.87 |
| 24.22 |
1550 |
4.4 |
106.5 |
1090 |
3821 |
10.23 |
| 24.01 |
1600 |
5.5 |
132.0 |
1320 |
4110 |
10.00 |
| 23.80 |
1650 |
6.9 |
164.2 |
1545 |
4210 |
9.43 |
| 23.64 |
1700 |
7.2 |
170.2 |
1752 |
4360 |
10.29 |
| 23.25 |
1750 |
10.1 |
234.8 |
1810 |
4620 |
7.70 |
| 23.02 |
1800 |
11.5 |
264.7 |
1920 |
4843 |
7.27 |
| 22.95 |
1850 |
12.3 |
282.2 |
2050 |
5002 |
7.26 |
| 22.75 |
1900 |
13.2 |
300.3 |
2150 |
5054 |
7.16 |
